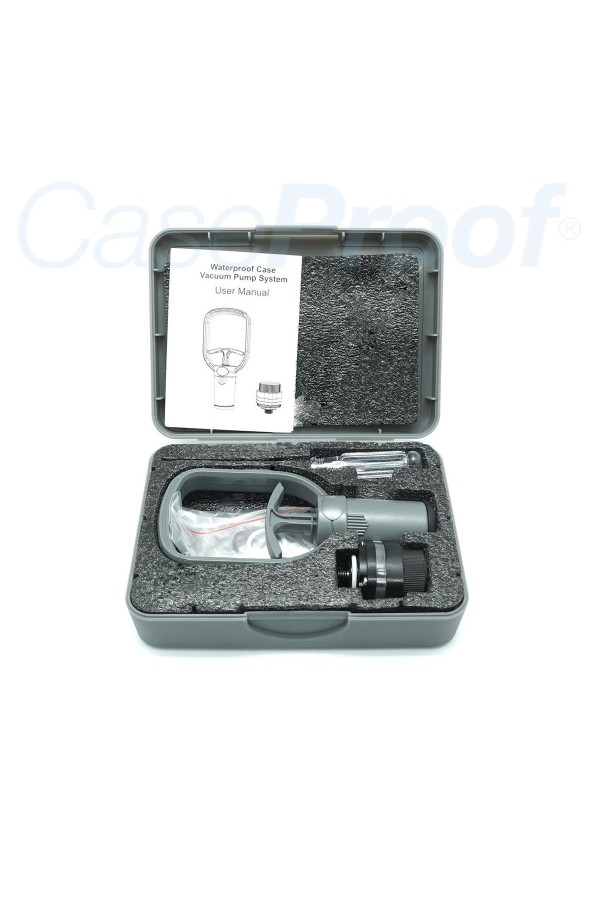

Vacuum pump for smartphone diving case / Underwater camera CaseProof®
Pre-Dive vacuum leak check system
The vacuum pump system for diving case 60 mèters
Install the camera inside underwater camera housing in dry and low humidity level place.
15-30 minutes before your dive remove the lid from back plate to access vacuum pump system opening (Illustration 1) and make sure the O-ring stays in place.
Attach vacuum pump system to the opening by screwing it clockwise (Illustration 2).

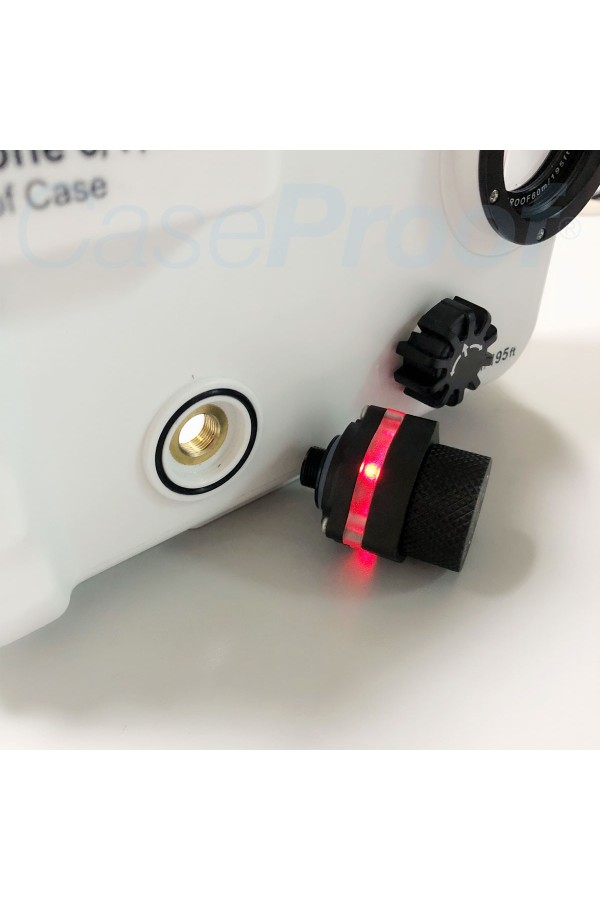

Unscrew the lid of electronic valve (Illustration 3) and press the button to turn on LED inside the valve (Illustration 4).
Attach the rubber part of a pump to valve and start pumping air out (Illustration 5).
Red LED starts blinking, indicating ambient atmospheric pressure. The hand pump is fitted to the threaded valve body and the air is pumped out of a unit until the red LED changes to green LED and add couple more strokes to make sure the sufficient underpressure.
The additional stroke or two ensures that the valve is not on the edge of threshold. The pump is then removed, and the protective cap replaced to ensure airtightness. Observe the green LED blinking for 15 minutes to make sure there is no air leakage.
Unscrew the lid of a valve to access the button and press it for a few seconds to release the pressure from inside and turn the valve LED off (Illustration 4). Remove the valve from back plate and place vacuum opening lid to its original place, make sure the O-ring is still there (Illustration 1). - safe to dive!
- Silicone et TPU
- 1 Year
- CaseProof ®
- Largeur comprise entre 4,6 cm et 7,6 cm
